2016 Ecodiesel

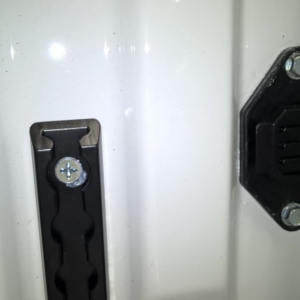

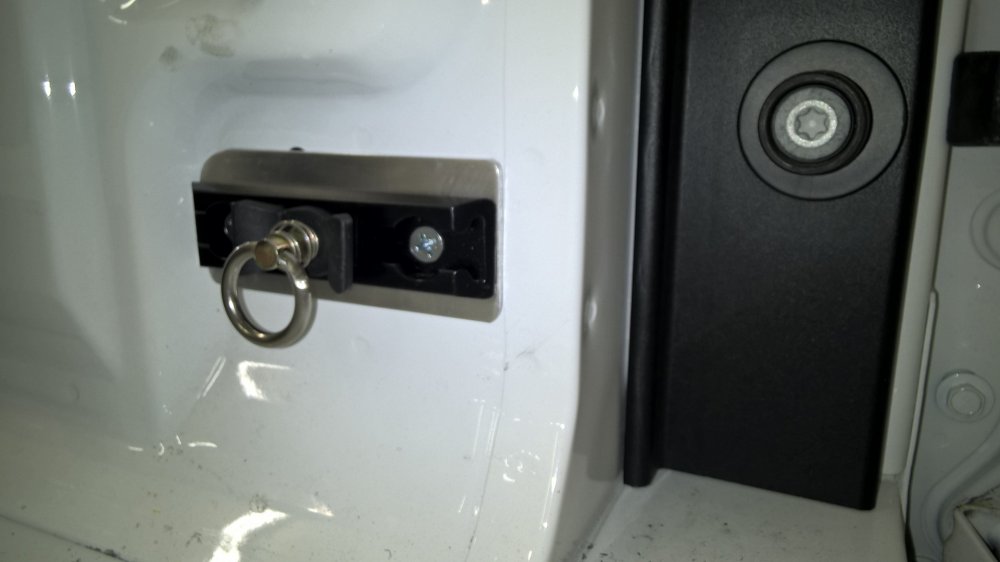

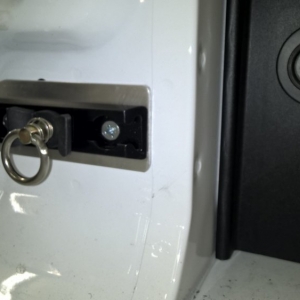

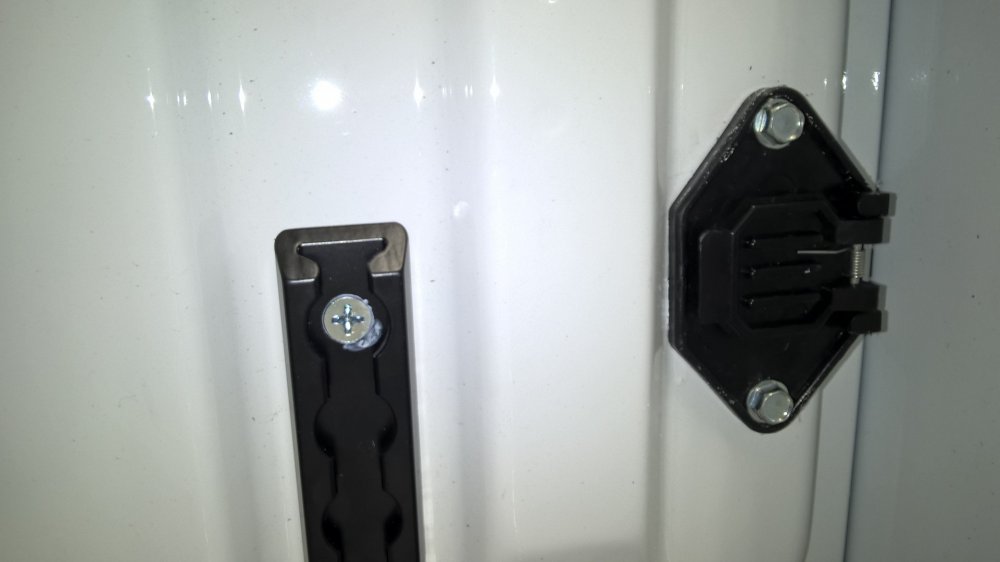

2016 Ram 1500, Factory Air-ride, 6.4' RamBox, Upgrade Timbren's, Modified the RamBox interior tiedown's.

General Description

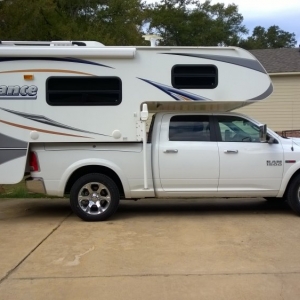

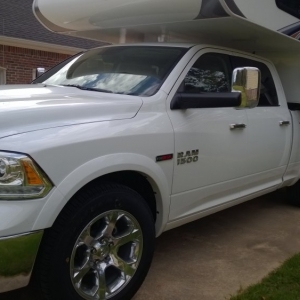

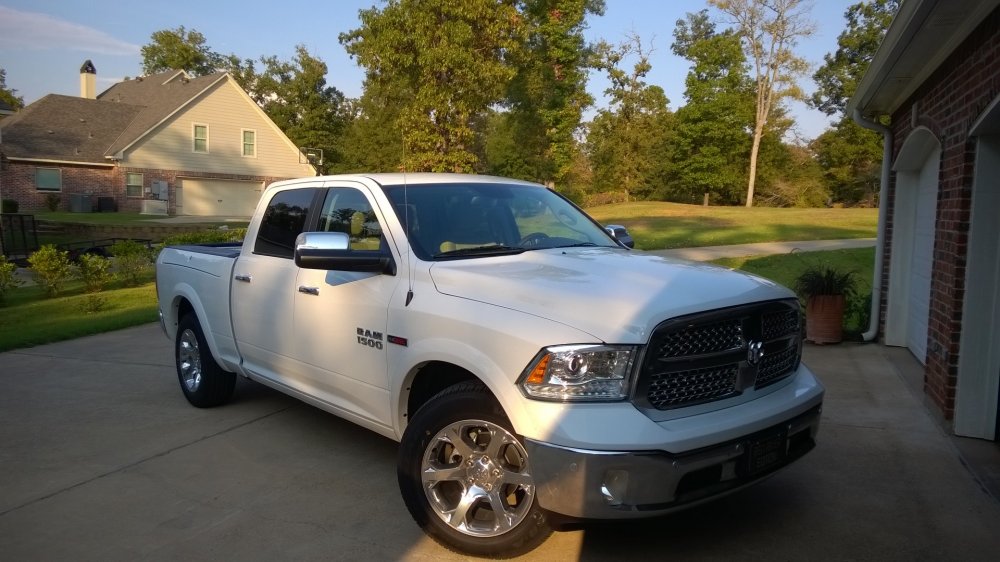

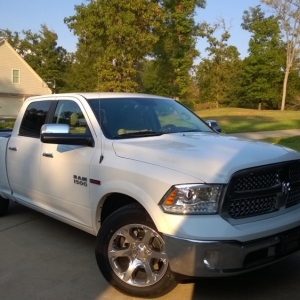

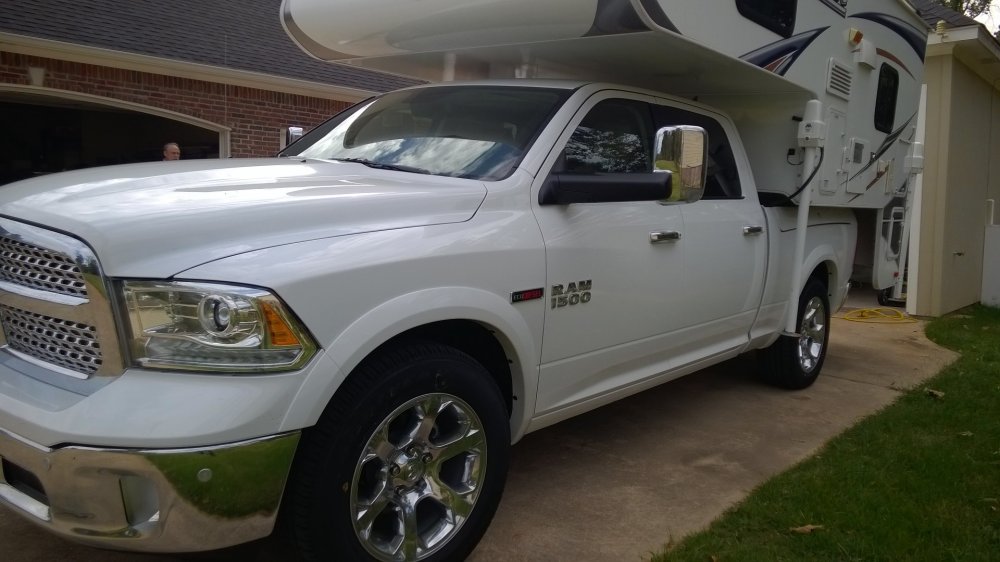

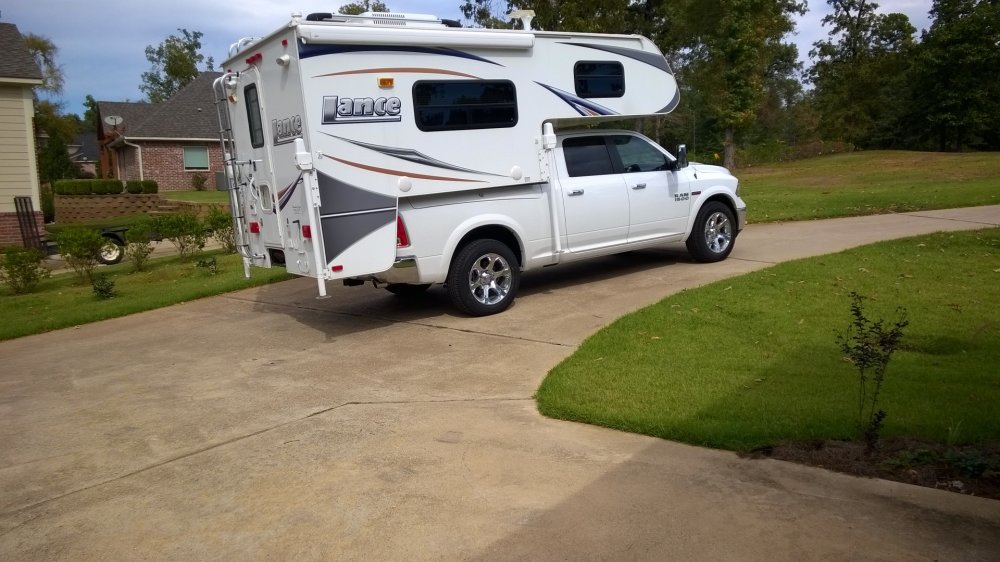

This is a 2016 Ram 1500 EcoDiesel with the 6.4 RamBox and Air-ride.
You do not have permission to view the full content of this item. Log in or register now.
  • WP_20151009_001.jpg
    115.1 KB · Views: 747
  • WP_20151010_006.jpg
    101.6 KB · Views: 141
  • WP_20151114_22_45_41_Pro.jpg
    41.6 KB · Views: 143
  • WP_20151114_22_46_00_Pro.jpg
    50.2 KB · Views: 120
  • WP_20151010_004.jpg
    89.9 KB · Views: 126
  • WP_20151010_14_32_05_Pro.jpg
    117.1 KB · Views: 129
  • Like
Reactions: ESTC


I think that's a Tad bit over the trucks 800# payload capacity!
Payload is 1600# but it is over that capacity by close to 800# when loaded, the camper is just 1800# dry and when wet and loaded it weighs in at 2300#-2400#. I also tow a 22" fishing deck boat boat that is 4400# towing and hitch weight is 350# and that is set on the 20" extended hitch.

I did add some timbrem's that at normal ride height are touching the bump stop and are just pre-loading about 200#. when I load the truck the air ride self levels and the timbrems help stabilize the load. At highway speed the air ride drops an inch on aero mode and loads about 800# under compression. I had the Timbrem builder help me cut these to length to have the preload and compression load, when the truck hits 62 mph's and the aero mode activates that extra compression and 800# load capacity really stabilizes the load. The truck gets very stable very little sway..

All in all the truck does a great job.
Oh no your payload is not 1600# open up and check your door panel for what your payload is. Or use the online chart. 1600# is Max available for a half ton. Probably less than that actually. And that would be a single cab 2x4 straight truck.

I've never ran Timbrens but I've had that payload in my truck with straight air and it handles it fine. It's that I built my truck for. Though anything more than 3k in the bed I'd have gotten an hd with only the Auto leveling rear bags.

But careful with your tires if you still have factory SR-A's. Even at Max 45psi they don't like that kind of weight. You should really invest in 10plys if you haven't already.

But verify your payload..
dbr2, I understand that this is a five years old thread. I believe your camper is a Lance 825, and it is loaded on Ram 1500 with Rambox. Even if you don't have the same truck and camper now, you have the experience of owning and using this combo, and I hope you can share your experiences with me. I am looking to buy a Lance 825 and load it on a Ram 3500 with Rambox. Given that it is a camper has a very tight fit between the Ramboxes, I am wondering how difficult it was for you each time you wanted to load the camper into the bed? Also, how far could you open up the Rambox doors when the camper was on? Was it possible to access inside the Rambox?
